Mineral crushing

FCB VIF™ & FCB Rhodax®4D crushers

Comprehensive crushing plants for increased production

Fives develops equipment and integrated plants for dry process mineral grinding applications. Our solutions are designed for high performance and flexibility, and reduced costs. From stand-alone machines to comprehensive systems, our efficient crushing solutions are equipped with proprietary equipment such as the FCB VIF™ crusher and FCB Rhodax® 4D.

Thanks to our extensive process and integration expertise, Fives can also modernize and modify existing plants to increase production capacity and performance.

FCB VIF™ CrusherFCB Rhodax® 4D

The FCB VIF™ hammer crusher: high crushing reduction ratio for primary and secondary applications

The FCB VIF™ crusher is an impact hammer mill equipped with hammers and a non-clogging mobile anvil device. Designed either for primary or secondary crushing stages, it features a high crushing reduction ratio capacity.



Customer benefits:

  • Sturdy design, with a long lifetime and reduced maintenance requirements
  • Handles sticky and clogging raw material with 5-15% moiture content

Key features:

  • A welded steel frame and heavy-duty forged rotor with two double-row self-aligning roller bearings
  • Perfect retractation thanks to slotted discs and single- or double-head hammers in an alternate and staggered arrangement
  • Anti-clogging Mobile Anvil Device (MAD)



Download FCB VIF™ brochure

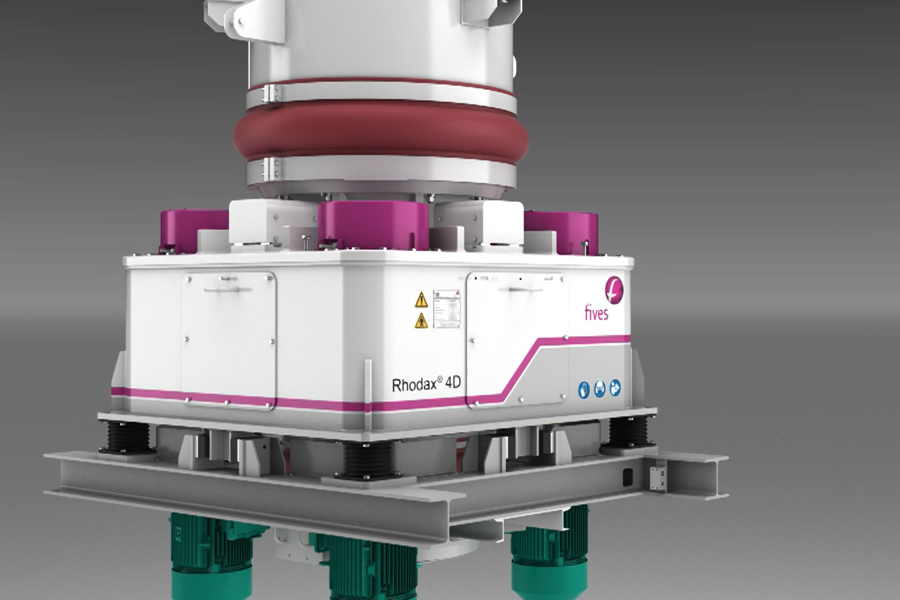

FCB Rhodax® 4D: an efficient and energy-saving cone crusher

The FCB Rhodax® 4D is a vibrating cone crusher offering a more efficient alternative to traditional crushing technologies. The FCB Rhodax® is the ultimate technology merging crushing and grinding applications within a single machine.

> Watch the video



Customer benefits:

  • Offers interparticle compressive grinding for constant product quality, particle size distribution and capacity
  • Offers high liberation ratio for greater beneficiation and a low flakiness index
  • Reduces the overall number of crushing and grinding stages, thus offering energy savings of up to 30%

Key features:

  • Closed-circuit operation offers a low noise level and zero dust emissions
  • Product quality is constant regardless of the liner wear, and wear parts last three times longer than a traditional cone crusher



> More about FCB Rhodax® 4D

Download FCB Rhodax® 4D brochure

Advanced solutions for a variety of applications

FCB VIF™ crusher

The FCB VIF™ impact crusher is designed for primary and secondary applications for crushing of:

  • Iron ore
  • Phosphates
  • Bauxite
  • Gypsum
  • Aggregates
  • Limestone
  • Clay materials

In primary applications, the crusher accepts blocks over 1 m3 (35 ft3) to obtain a 40 mm (1 1/2 in) product. In secondary application, the 300 mm (12 in) feed size produces a 20 mm (about 3/4 in) product.

FCB Rhodax® 4D

The FCB Rhodax® 4D offers advanced grinding force control with a high reduction ratio (up to 100/1). It can be used in concrete recycling and crushing applications, including:

  • Abrasive materials
  • Ceramics, tiles and fired clay
  • Silica,
  • Ferro-nickel, ferroalloys, ferrochrome
  • Silicon metal
  • Copper, ilmenite and steel slag
  • Diamond and iron ore
  • Phosphates
  • Aggregates
  • Limestone

Long-life wear parts offer significant savings, particularly when grinding hard and abrasive materials.

More about FCB Rhodax® 4D
