Cincinnati - Robotic Viper


Connect with an expert

Features:

  • Width - 3.2mm, 6.4mm, 12.7mm (1/8”, 1/4”, 1/2”)
  • Tow feed/CCR - add 1.0 m/sec on the fly speed
  • End of tow accuracy +/- 2.0mm velocity range
  • Laying feed rate up to 1.0 m/sec
  • ACES CAM software
  • Vertical gantries, moving column, robotic arm
  • Fixed and docking creel designs
  • Fixed tool, rotating mandrel
  • Modular head design
  • Multiple material widths
    • 1/8”, 1/4”, 1/2”
  • Multiple material types:
    • UD carbon, glass & Kevlar epoxies, BMI,
      out of auto clave, dry fiber
  • Installation and 12-month warranty

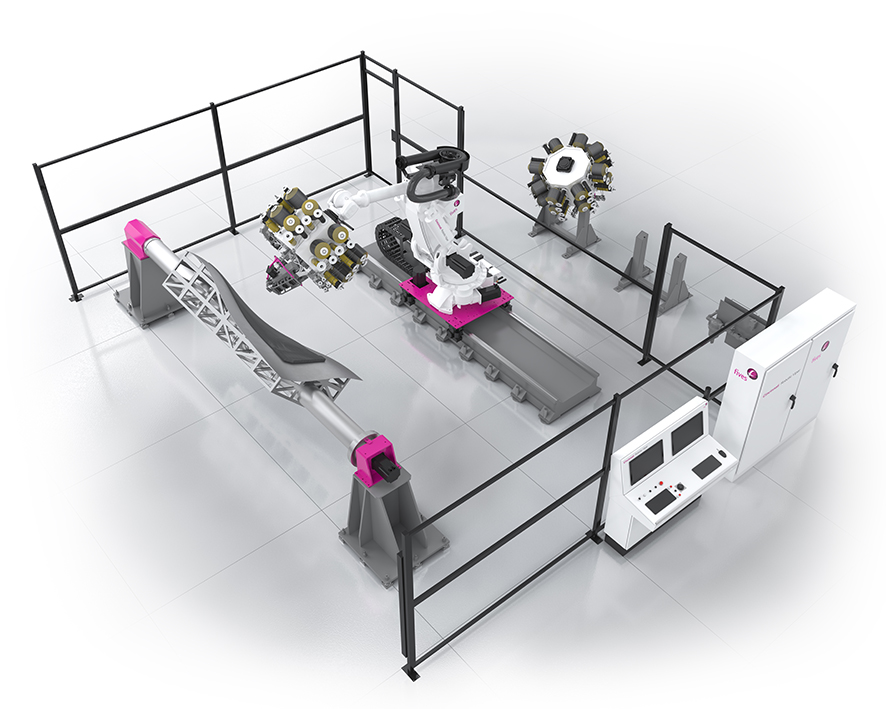

Cincinnati Robotic Viper

The next generation of automated fiber placement

Lower price point without sacrificing the quality, accuracy
and reliability of renowned Fives composite equipment.

  • High reliability cut/add mechanisms
  • Accuracy at high laydown rates
  • Compatible to previous generation Viper AFP Systems
  • Available with In-Process Inspection (IPI) System
